Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor

Product Categories
Wenzhou Tyhe Motor Co., Ltd.
Contact Now

Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor

Brand Name : TYHE

Model Number : TJP37RGa

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 37mm diameter

Voltage : 12v 6v 24v or customized

Speed : Customized

Torque : 1.5N.m

Commutation : brushed

Type : Brushed dc motor, dc mini motor

Keywords : Mini Dia 37mm 6v 12v 24v high torque low speed 5rpm 60 rpm 1.5nm 2nm 20kg 15kgf load micro PMDC 520 dc geared motor

Contact Now

Products Description

high torque low rpm RS555 24v 12v 10rpm 30rpm 50rpm 100rpm 200rpm 300rpm 15 watt 20w 2nm 1nm dc geared motor

Specifications

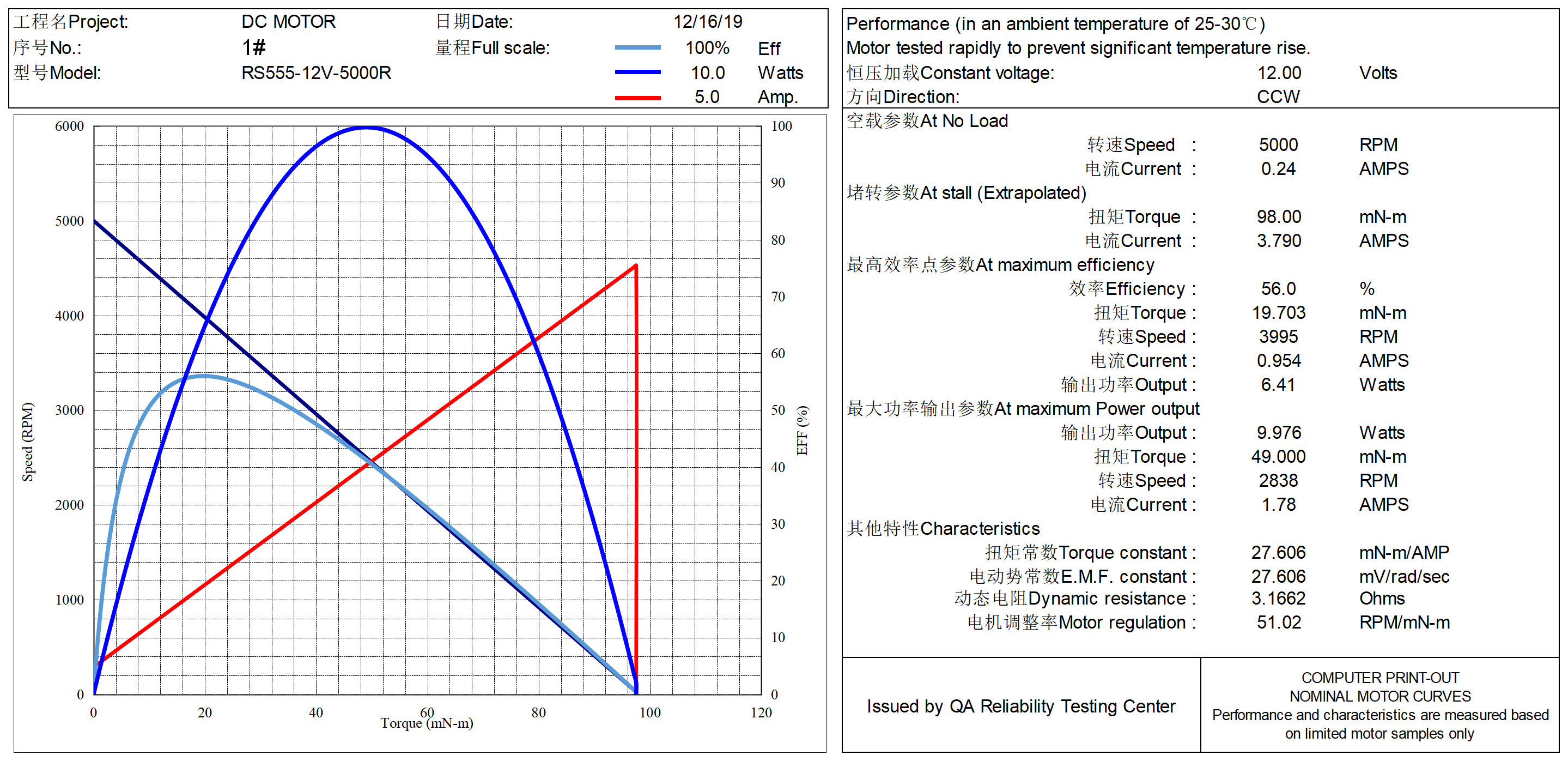

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Curren
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 3000 110 2400 0.42 12.30 3.09 62.07 36.90 3.00
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 5700 290 4560 1.07 17.20 8.21 63.81 51.60 7.65
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 12 7600 360 6080 1.65 20.10 12.80 64.69 60.30 13.30
RS555 12 9000 390 7200 1.79 18.50 13.95 64.81 55.50 14.50
RS555 12 11000 600 8800 2.75 22.30 20.55 62.27 66.90 22.20
RS555 24 3500 70 2800 0.31 15.80 4.63 61.60 47.40 2.50
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10

2D drawing

Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor


Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor


Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor

Please let us know your requirements and we will provide you with transmission solutions.

Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared MotorMini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared MotorMini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared MotorMini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared MotorMini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared MotorMini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
